CertaUPS C550

CertaUPS

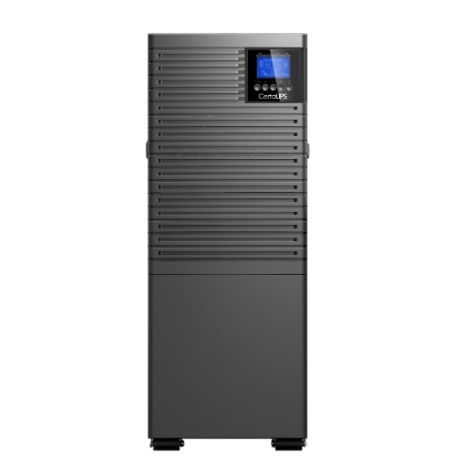

C550 Front View

The C550 series is available in two power ratings 6kVA and 10kVA.

Overview

Online double conversion tower uninterruptible power supply with a unity power factor. The CertaUPS C550 UPS system is supplied with internal batteries as standard. This removes the need for external battery cabinets on standard runtimes, maximising valuable floor space.

Additional Features

    • Online double conversion topology
    • Server shut down in the event of a mains fail
    • Wide input voltage window
    • Selectable output voltage
    • Frequency converter feature
    • EPO connection
    • Intelligent communications slot
    • Plug 'n' play parallel kits
    • Future expansion or redundancy
    • Internal manual bypass

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 6 / 10
DIMENSIONS (WxDxH) 220W x 492D x 589H
WEIGHT 14 (C550-060-B) / 16 (C550-060-C) 14 (C550-100-B) / 16 (C550-100-C)
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 176-276VAC (100% load), 120-276VAC (50% load)
INPUT FREQUENCY 50/60Hz
OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 1
OUTPUT WAVEFORM Sinewave
OUTPUT VOLTAGE 208*/220/230/240VAC
OUTPUT FREQUENCY 50/60Hz (±10Hz)
OUTPUT EFFICIENCY >92% (Line mode), >92% (Battery mode), >96% (Eco mode)
BATTERY RUNTIME 5.5 minutes (C550-060-B), Dependent on battery capacity (C500-060-C), 3.5 minutes (C550-100-B), Dependent on battery capacity (C550-100-C)
BATTERY DC VOLTAGE 240VDC
BATTERY CHARGE CAPACITY 1.4A,0-4A adjustable (C550-060-B) 12A 0-12A adjustable (C550-100-B), 2A, 0-2A adjustable (C550-060-C) 12A, 0-12A adjustable (C550-100-C)
MECHANICAL AC OUTLETS Hardwired
OPERATING TEMPERATURE TOLERANCE 0 - 40°C
STORAGE TEMPERATURE TOLERANCE -15 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <3000m
COMMUNICATION USB
OPTIONAL COMMS RS-232 / SNMP / dry contact relays / Modbus
PARALLEL Up to 3
FUNCTIONS EPO, Expandable Battery Modules, LCD
