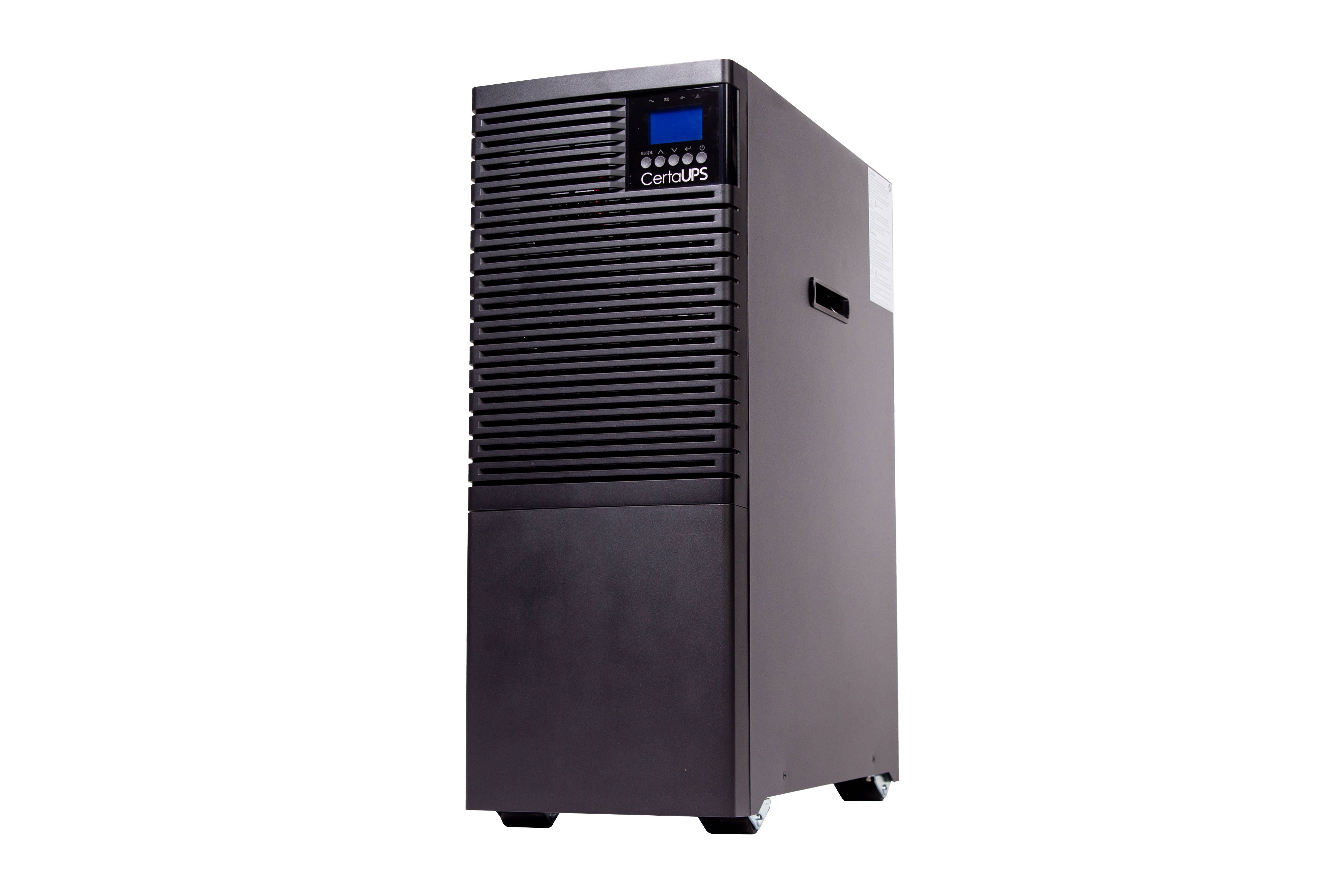

CertaUPS C650

CertaUPS

The C650 series is available in two power ratings 6kVA and 10kVA.

Overview

Online double conversion tower uninterruptible power supply with a unity power factor. The CertaUPS C650 UPS system is supplied with internal batteries as standard. This removes the need for external battery cabinets on standard runtimes, maximising valuable floor space. The C650 comes complete with out of the box connectivity. An unlimited number of compatible CertaUPS UPS systems can be monitored anywhere in the world with the IoT monitoring software available for Android and iOS.

Additional Features

    • Online double conversion topology
    • Unity power factor
    • Server shut down in the event of a mains fail
    • Wide input voltage window
    • Selectable output voltage
    • Intelligent communications slot
    • Plug 'n' play parallel kits
    • Future expansion or redundancy
    • Out of the box connectivity
    • Small footprint

Technical Specification

WARRANTY

3 Year Parts

RATING KVA

6 / 10

DIMENSIONS (WxDxH)

225W x 416D x 589H (C-models) 225W x 416D x 354H (B-models)

WEIGHT

58 (C650-060-B) / 14 (C650-060-C) 69 (C650-100-B) / 16 (C650-100-C)

INPUT PHASE

Single Phase

INPUT VOLTAGE

220/230/240VAC

INPUT VOLTAGE TOLERANCE RANGE

176-276VAC (100% load), 120-276VAC (50% load)

INPUT FREQUENCY

50/60Hz

OUTPUT PHASE

Single Phase

OUTPUT POWER FACTOR 1
OUTPUT WAVEFORM

Sine wave

OUTPUT VOLTAGE

208*/220/230/240VAC

OUTPUT FREQUENCY

50/60Hz (±10Hz)

OUTPUT EFFICIENCY

>92% (Line mode), >92% (Battery mode), >96% (Eco mode)

BATTERY RUNTIME

5.5 minutes (C650-060-B), Dependent on battery capacity (C650-060-C), 3.5 minutes (C650-100-B), Dependent on battery capacity (C650-100-C)

BATTERY DC VOLTAGE

240VDC

BATTERY CHARGE CAPACITY

1.4A,1-4A adjustable (C650-060-B) 4A 2-12A adjustable (C550-100-B), 2A, 1-4A adjustable (C550-060-C) 4A, 2-12A adjustable (C550-100-C)

MECHANICAL AC OUTLETS

Hardwired

OPERATING TEMPERATURE TOLERANCE

0 - 40°C

STORAGE TEMPERATURE TOLERANCE -15 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <3000m
COMMUNICATION USB
OPTIONAL COMMS RS-232 / SNMP / dry contact relays / Modbus
PARALLEL Up to 3
FUNCTIONS EPO, Expandable Battery Modules, LCD
