CertaUPS C650R

CertaUPS

As a unity power factor UPS system, The C650R is a highly efficient online double conversion unit presenting numerous benefits to the user. Main applications include small data centres, server rooms, IT facilities, telecoms and networking. The C650R series is available in two power ratings 6kVA and 10kVA

Overview

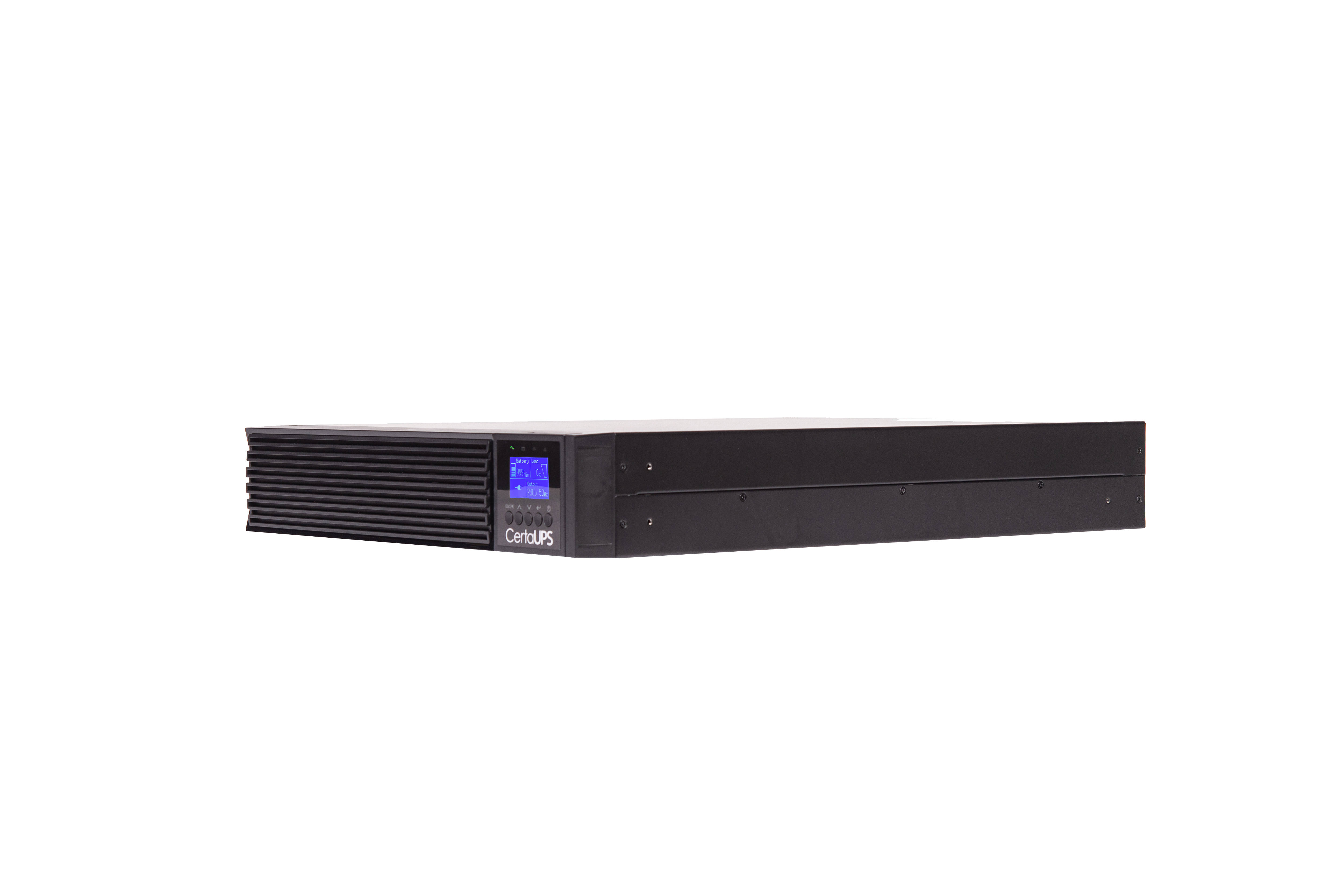

The CertaUPS C650R UPS system is an online double conversion uninterruptible power supply with unity power factor for rack installation. Rack rails come as standard with the C650R giving users the flexibility to place it in a server rack or have it as a free standing tower unit. The C650R comes complete with out of the box connectivity. An unlimited number of compatible CertaUPS UPS systems can be monitored any where in the world with the IoT monitoring software available for Android and iOS.

Additional Features

  • Requires only 2U of rack space
  • Unity power factor
  • Online double conversion topology
  • Out of the box connectivity with IoT monitoring app
  • High efficiency up to 95%
  • Smart LCD display
  • Expandable runtime
  • Rackmount rails included

Technical Specification

WARRANTY

3 Year Parts

RATING KVA

6 / 10

DIMENSIONS (WxDxH)

438W x 540D x 88H (2U)

WEIGHT

14 (C650R-060-B) / 16 (C650R-060-C) 14 (C650R-100-B) / 16 (C650R-100-C)

INPUT PHASE

Single Phase

INPUT VOLTAGE

220/230/240VAC

INPUT VOLTAGE TOLERANCE RANGE

176-276VAC (100% load), 120-276VAC (50% load)

INPUT FREQUENCY

50/60Hz

INPUT FREQUENCY TOLERANCE RANGE

±10%

OUTPUT OUTPUT PHASE

Single Phase

OUTPUT POWER FACTOR

1

OUTPUT WAVEFORM

Sine wave

OUTPUT VOLTAGE

208/220/230/240VAC

OUTPUT FREQUENCY

50/60Hz (±10%)

BATTERY RUNTIME 5.5 minutes (C550R-060-B), Dependent on battery capacity (C500R-060-C), 3.5 minutes (C550R-100-B), Dependent on battery capacity (C500R-100-C)
BATTERY DC VOLTAGE 180VDC (6kVA), 240VDC (10kVA)
BATTERY CHARGE CAPACITY

1.4A (C650R-060-B) / 4A (C650R-060-C), 2A (C650R-100-B) / 4A (C650R-100-C)

MECHANICAL AC OUTLETS

IEC C13*2, C19*1 and terminal block (C500R-060-B), IEC C13*2, C19*2 and terminal block (C500R-060-C) IEC C19*4 and terminal block (C500R-100-B), IEC C13*4, C19*2 and terminal block (C500R-100-C)

OPERATING TEMPERATURE TOLERANCE

0 - 40°C

STORAGE TEMPERATURE TOLERANCE

-15 - 40°C

RELATIVE HUMIDITY

<95% (non-condensing)

OPERATING ALTITUDE TOLERANCE

<3000m

COMMUNICATION

RS232, USB, WiFi and Ethernet

OPTIONAL COMMS

SNMP / dry contact relays / Modbus

PARALLEL

Up to 3

FUNCTIONS

EPO, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD, Dual Input
