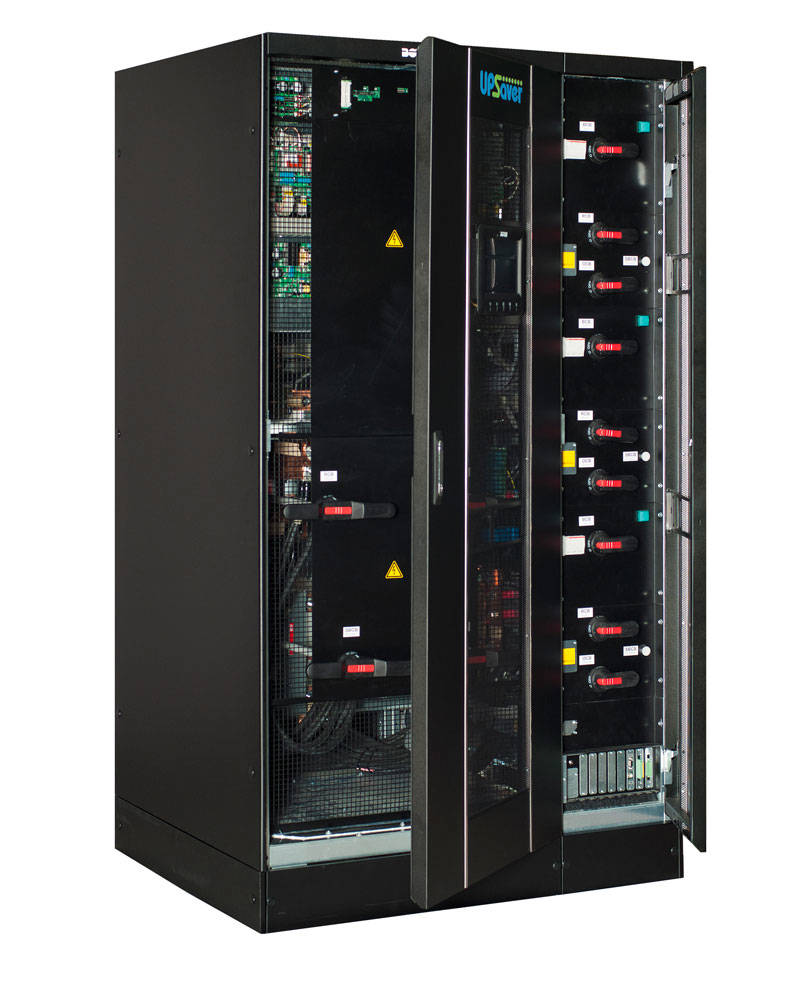

Borri UPSaver
The Borri UPSaver and UPSaver 3vo UPS (uninterruptible power supply) is a very high efficiency, multi function and fully adaptable three phase modular UPS system supplying online double conversion power. The power modules provide flexibility of the system and can be configured as either a standalone unit or in a modular framework.
Overview
The Borri UPSaver is available from 400kVA and can be scaled up to 12.8MW and the UPSaver 3vo is available from 670kVA and is scalable up to 21MW. Both modular UPS systems achieve a maximum efficiency of 99.5%
Key Features
UPSaver technical specification
| WARRANTY |
1 Year Parts (upgradable to 5 Years) |
| RATING KVA |
400 - 1600 |
| N NOMINAL POWER |
400kW - 1600kW |
| N+1 NOMINAL POWER |
200kW - 1400kW |
| DIMENSIONS (WxDxH) |
2350x 970x 2100 (400kVA) 2950x 970x 2100 (600kVA) 3900x 970x 2100 (800kVA) 4500x 970x 2100 (1000kVA) 5100x 970x 2100 (1200 kVA) 6800x 970x 2100 (1400kVA) 7400x 970x 2100 (1600kVA) |
| WEIGHT |
1660KG (400kVA) 2260KG (600kVA) 2920KG (800kVA) 3590KG (1000kVA) 4190KG (1200 kVA) 4960KG (1400kVA)5560KG (1600kVA) |
| INPUT PHASE |
Three Phase |
| INPUT VOLTAGE TOLERANCE RANGE |
'-20%, +15% (rectifier); ±10% (bypass) |
| INPUT FREQUENCY |
50/60 Hz, 45 to 65 Hz |
| OUTPUT PHASE |
Three Phase |
| OUTPUT POWER FACTOR |
Any power factor (leading or lagging) up to 1, without power derating |
| OUTPUT WAVEFORM |
Sinusoidal |
| OUTPUT VOLTAGE |
380/400/415 Vac 3-phase with neutral |
| OUTPUT FREQUENCY |
50/60 Hz |
| OUTPUT EFFICIENCY |
Up to 99.5% |
| BATTERY CONFIGURATION |
External 360 to 372 cells, VRLA (other options) |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| COMMUNICATION |
Included: serial RS232 and USB; input terminal block (remote emergency power off, battery circuit breaker aux. cont., external maintenance bypass circuit breaker aux. cont., diesel mode aux. cont., external output circuit breaker aux. cont., remote transfer to bypass mode); SPDT contact relay board; ModBus-RTU (RS485);Optional: ModBus-TCP/IP (Ethernet); ModBus-RTU to PROFIBUS DP adapter |
| OPTIONAL COMMS |
extended VFC |
| PARALLEL |
Up to 8 UPS, for a total of 12.8 MW |
| FUNCTIONS |
Optional: Isolation transformer; custom battery cabinets; wall-mounted battery fuse switch box; battery thermal probe; parallel kit; load-sync for single UPS and load-sync box (2 UPS systems); other options on request |
Resources
Borri UPSaver 3vo Leaflet
Borri UPSaver Leaflet
Related products
Additional Features
- 4 level modularity
- Hot swappable batteries and modules for easy maintenance
- High efficiency even at low loads
- 4 operation modes - double conversion (VFI), active filtering (VI), ECO mode (VFD) and ultra high efficiency mode (VFD)
- Detection of circuitry and input disconnection for maximum operator safety
- Unity input power factor
UPSaver 3vo technical specification
| WARRANTY |
1 Year Parts (upgradable to 5 Years) |
| RATING KVA |
670 - 2670 |
| N NOMINAL POWER |
670kW - 2670kW |
| NO OF MODULES |
2-8 |
| DIMENSIONS (WxDxH) |
2450x 970x 2100 (670kVA) 3050x 970x 2100 (1000kVA) 4100x 970x 2100 (1340kVA)4700x 970x 2100 (1670 kVA) 5700x 970x 2100 (2000 kVA) |
| WEIGHT |
1800KG (670kVA) 2540KG (1000kVA) 3170KG (1340kVA) 3900KG (1670kVA) 4700KG (2000kVA) |
| BATTERY CONFIGURATION |
External 360 to 372 cells, VRLA (other options) |
| INPUT PHASE |
Three Phase |
| INPUT VOLTAGE TOLERANCE RANGE |
'-20%, +15% (rectifier); ±10% (bypass) |
| INPUT FREQUENCY |
50/60 Hz, 45 to 65 Hz |
| PARALLEL |
Up to 8 UPS, for a total of 12.8 MW |
| OUTPUT PHASE |
Three Phase |
| OUTPUT POWER FACTOR |
Any power factor (leading or lagging) up to 1, without power derating |
| OUTPUT WAVEFORM |
Sinusoidal |
| OUTPUT VOLTAGE |
380/400/415 Vac 3-phase with neutral |
| OUTPUT FREQUENCY |
50/60 Hz |
| OUTPUT EFFICIENCY |
Up to 99.5% |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| COMMUNICATION |
Included: serial RS232 and USB; input terminal block (remote emergency power off, battery circuit breaker aux. cont., external maintenance bypass circuit breaker aux. cont., diesel mode aux. cont., external output circuit breaker aux. cont., remote transfer to bypass mode); SPDT contact relay board; ModBus-RTU (RS485);Optional: ModBus-TCP/IP (Ethernet); ModBus-RTU to PROFIBUS DP adapter |
| OPTIONAL COMMS |
extended VFC |
| FUNCTIONS |
Optional: Isolation transformer; custom battery cabinets; wall-mounted battery fuse switch box; battery thermal probe; parallel kit; load-sync for single UPS and load-sync box (2 UPS systems); other options on request |
