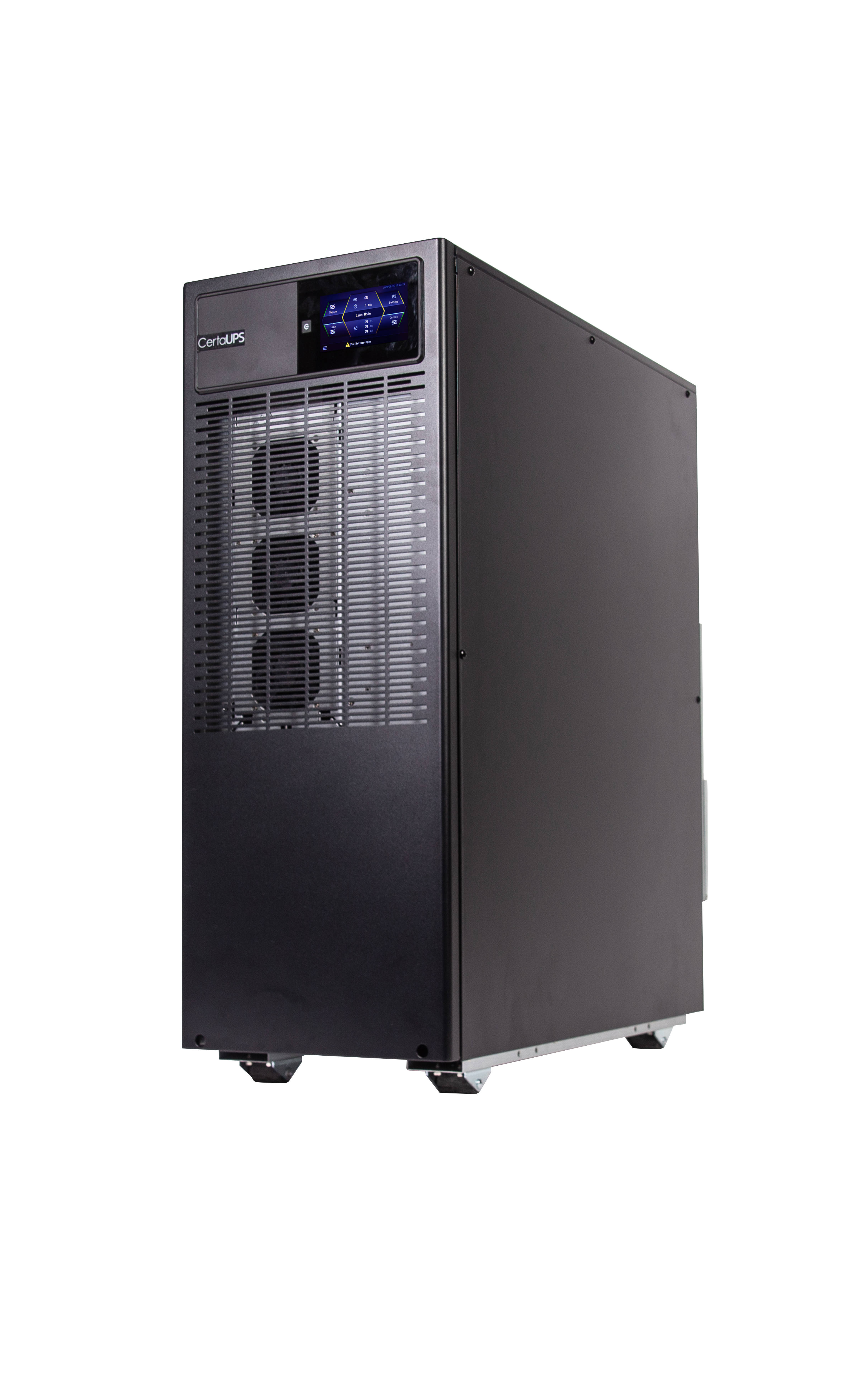

CertaUPS C750
Available in two power ratings 10kVA and 20kVA
The C750 UPS series is configurable as a three phase or single phase (3-3, 3-1 or 1-1) UPS to meet utility and load wiring. is a unity power factor UPS available in two power ratings 10kVA and 20kVA. It features out of the box connectivity with the 'CertaUPS Monitor' that can be downloaded for Apple and Android devices.
Overview
Online double conversion tower uninterruptible power supply with a unity power factor. The CertaUPS C750 UPS system is one of the most sophisticated units on the market with intelligent IoT monitoring software. By simply scanning the QR code on the unit, an unlimited number of UPS can be monitored using the same smartphone app.
The C750 series can be configured as anthree phase or single phase (3-3, 3-1 or 1-1) UPS to meet utility and load wiring.
Key Features
Technical Specification
| WARRANTY |
3 Year Parts |
| RATING KVA |
10 / 20 |
| DIMENSIONS (WxDxH) |
300W x 633.2D x 805.5H (mm) |
| WEIGHT |
105kg (C750-060-B) / 53kg (C750-060-C) 160kg (C750-100-B) / 55kg (C750-100-C) |
| INPUT PHASE |
Single Phase / Three Phase |
| INPUT VOLTAGE |
220/230/240VAC or 380/400/415 VAC |
| INPUT VOLTAGE TOLERANCE RANGE |
110VAC - 300VAC |
| INPUT FREQUENCY |
40/70Hz |
| OUTPUT PHASE |
Single Phase / Three Phase |
| OUTPUT POWER FACTOR |
1 |
| OUTPUT WAVEFORM |
Sine wave |
| OUTPUT VOLTAGE |
220/230/240VAC or 380/400/415VAC |
| OUTPUT FREQUENCY |
50/60Hz |
| OUTPUT EFFICIENCY |
>95% |
| MAXIMUM EBM QUANTITY |
6 |
| BATTERY DC VOLTAGE |
192 / 240V DC Selectable (10kVA) 384VDC or 480VDC Selectable (20kVA) |
| MECHANICAL AC OUTLETS |
Hardwired |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| STORAGE TEMPERATURE TOLERANCE |
-15 - 40°C |
| RELATIVE HUMIDITY |
0-95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE |
0-3000m |
| COMMUNICATION |
USB, RS232, WiFi, Ethernet |
| OPTIONAL COMMS |
SNMP / dry contact relays / Modbus |
| PARALLEL |
Up to 3 |
| FUNCTIONS |
EPO, Expandable Battery Modules, touch screen LCD display |
Resources
User Manual
Related products
6kVA - 10kVA
Rackmountable or Tower
Online double conversion uninterruptible power supply with unity power factor
As a unity power factor UPS system, The C650R is a highly efficient online double conversion unit presenting numerous benefits to the user. Main applications include small data centres, server rooms, IT facilities, telecoms and networking. The C650R series is available in two power ratings 6kVA and 10kVA
6kVA - 10kVA
Standalone Tower
Online double conversion uninterruptible power supply with unity power factor
The C650 series is available in two power ratings 6kVA and 10kVA.
Additional Features
-
- Unity (1) power factor
- Configurable as single phase or three phase (3-3, 3-1, 1-1)
- Configurable as single source input or dual source input for utility and bypass.
- High efficiency up to 95%
- Pure sinewave output
- True online double conversion
- Expandable runtime with additional battery modules and automatic detection of EBM quantity
- Compact size requiring a small installation space
- Out of the box connectivity with the IoT monitoring software App
- Colour touch screen LCD display with gravity sensors.
- DSP design enables precise and reliable control
