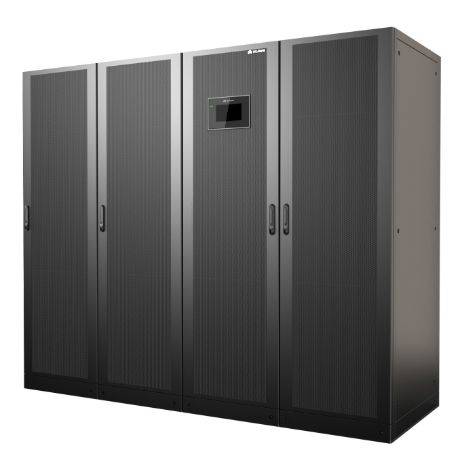

Huawei UPS5000-S Series
The Huawei UPS5000-S series is an online double conversion high efficiency modular uninterruptible power supplies that are scalable up to multi megawatt solutions. Offering extended flexibility, the Huawei UPS5000-S can now be upgraded to include lithium-ion batteries.
Overview
The hot swappable modules reduces maintenance time to 5 minutes which improves the system availability. The operation of the unit is also simplified thanks to the architecture and system flexibility. The cabinet can easily be expanded up to 800kVA to complement business growth and reduce the initial investment requirement.
Key Features
Technical Specification
| WARRANTY |
1 Year Parts (upgradable to 5 Years) |
| RATING KVA |
50 - 800 |
| DIMENSIONS (WxDxH) |
600Wx850Dx2000H (200/300), 1200Wx850Dx2000H (400/500) 1400Wx850Dx2000H (600) 2400Wx850Dx2000H (800) |
| WEIGHT |
225-354KG (50-200kVA) 251-416KG (50-300kVA) 462-693KG (50-400kVA) 648-945KG (50-500kVA) 709-1072KG (50-600kVA) 1061-1556KG (50-800kVA) |
| INPUT PHASE |
Three Phase + Neutral |
| INPUT VOLTAGE |
380/400/415VAC |
| INPUT VOLTAGE TOLERANCE RANGE |
305-485VAC @ 100% load / 138-485VAC @ 40% load |
| INPUT FREQUENCY |
40-70Hz |
| OUTPUT PHASE |
Three Phase + Neutral |
| OUTPUT POWER FACTOR |
1 |
| OUTPUT WAVEFORM | Sinewave |
| OUTPUT VOLTAGE | 380/400/415VAC |
| OUTPUT FREQUENCY | 50/60Hz ±0.1% |
| OUTPUT EFFICIENCY | Up to 97.1% (AC-AC) and (DC-AC) |
| BATTERY RUNTIME | Dependent on battery capacity |
| BATTERY DC VOLTAGE | 280-600VDC (without derating) |
| BATTERY CHARGE CAPACITY | 30A per installed power module |
| MECHANICAL AC OUTLETS | Hardwired |
| OPERATING TEMPERATURE TOLERANCE | 0-40°C |
| STORAGE TEMPERATURE TOLERANCE | -40 - +70°C |
| RELATIVE HUMIDITY | <95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE | <1000m |
| COMMUNICATION |
USB, RS232, Modbus, SNMP and VFC |
| OPTIONAL COMMS |
extended VFC |
| PARALLEL |
Up to 4 |
| FUNCTIONS |
EPO, Expandable Battery, Touchscreen LCD |
Resources
Product Brochure
User Manual 350 kVA - 880 kVA
Related products
Battery Solution
Lithium-ion UPS
The lithium-ion (LFP) battery cells offer high power density with a 70% reduced footprint
The Huawei SmartLi is a lithium-ion (LFP) battery solution for UPS systems combining cutting edge technology with leading edge digitalisation and offers a high density of 100kW/3U. It also has high efficiency of up to 97% and a compact footprint, which is 50% smaller than that of standard VLRA batteries.
Additional Features
- Hot swappable modules
- High efficiency up to 97.5%
- Wide input voltage range
- Intelligent battery management
- Three year warranty
- High power density
- Coloured LCD screen
