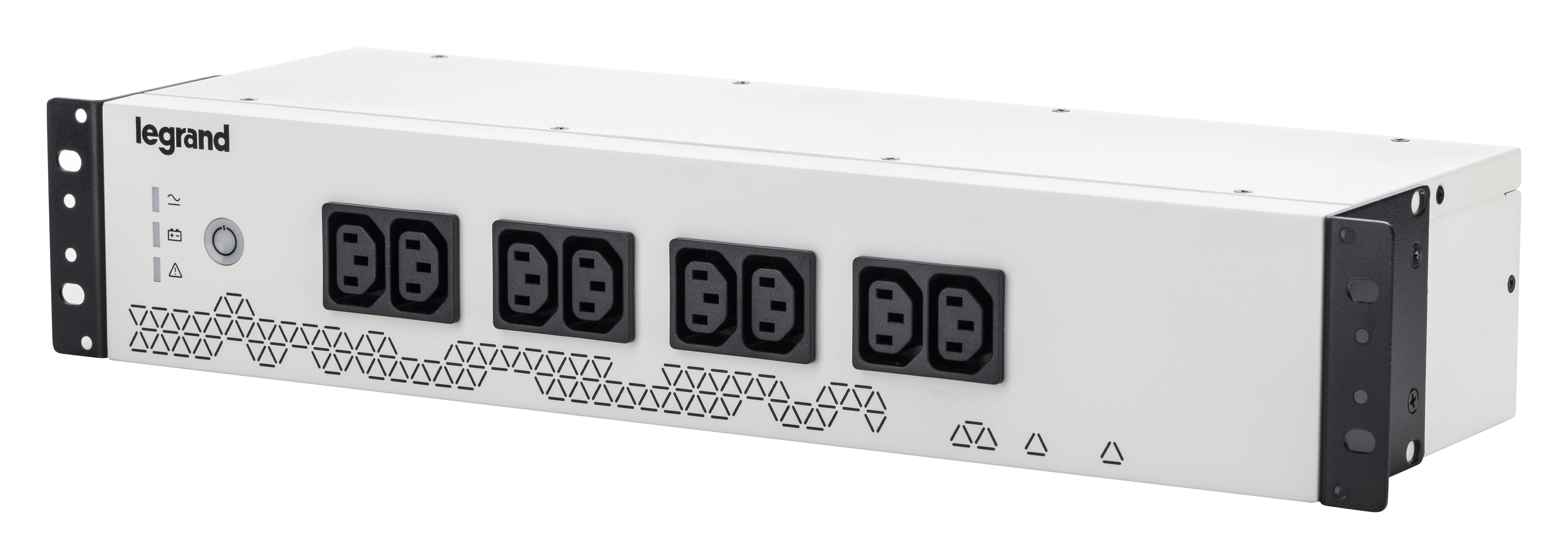

Legrand Keor PDU
Legrand's Keor PDU is ultra compact with 8 IEC C13 sockets providing 15 minute autonomy in just two rack units.
Overview
Available in sleek black or white, the Keor PDU UPS is purpose-built for 19-inch panels and racks. Its ultra-compact design makes it perfect for shallow racks where standard UPS systems may not fit.
Despite its slim 2U profile, it delivers up to 15 minutes of backup power through 8 IEC C13 outlets, ensuring reliable protection for your critical equipment.
Key Features
Additional Features
- 3 LEDs to monitor UPS status in real time
- Low energy consumption
- Economically advantageous solution
- Front installation and maintenance
- Silent operations
- Less space occupied inside the cabinet
- Lower installation weight
Technical Specification
| WARRANTY |
3 Year UPS and Batteries |
| RATING VA |
800 |
| DIMENSIONS (HxWxD) |
88 x 440 x 150 |
| WEIGHT (kg) |
5.5 |
| INPUT PHASE | Single Phase |
| INPUT VOLTAGE TOLERANCE RANGE |
230V |
| INPUT FREQUENCY | 50/60Hz (Auto Sensing) |
| OUTPUT OUTPUT PHASE | Single Phase |
| OUTPUT POWER FACTOR |
0.6 |
| OUTPUT WAVEFORM |
Simulated sinewave |
| OUTPUT VOLTAGE |
230V ± 10% |
| OUTPUT FREQUENCY |
50-60Hz (± 1Hz) |
| BATTERY RUNTIME |
Up to 15 minutes |
| MECHANICAL AC OUTLETS |
8* IEC C13 |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| STORAGE TEMPERATURE TOLERANCE | 0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE |
<1000m |
| COMMUNICATION |
USB, HID |
| PARALLEL | N/A |
| FUNCTIONS | Off-Mode Charging, AVR, Auto-Restart, Cold Start, RJ11 andRJ45 Filters, LCD |
Resources
Keor PDU Brochure
Keor PDU Quick Start Guide
Keor PDU User & Installation Manual
Keor PDU Data Sheets
Keor PDU Environmental Certification (PEP)
Related products
750VA - 3000VA
Rackmount
Line interactive uninterruptible power supply with pure sinewave output

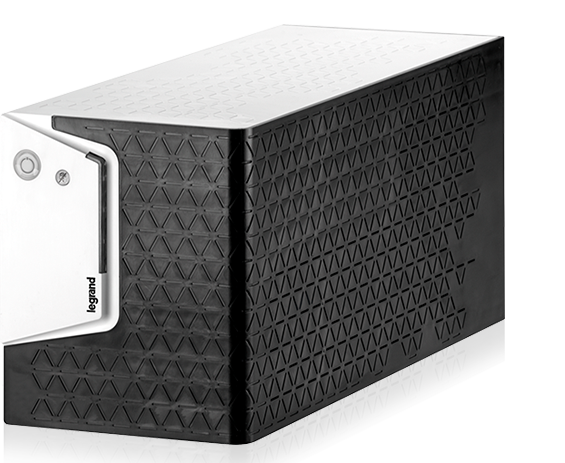

Legrand's Keor SPE RT series is available in 5 power ratings 750VA, 1000VA, 1500VA, 2200VA and 3000VA
