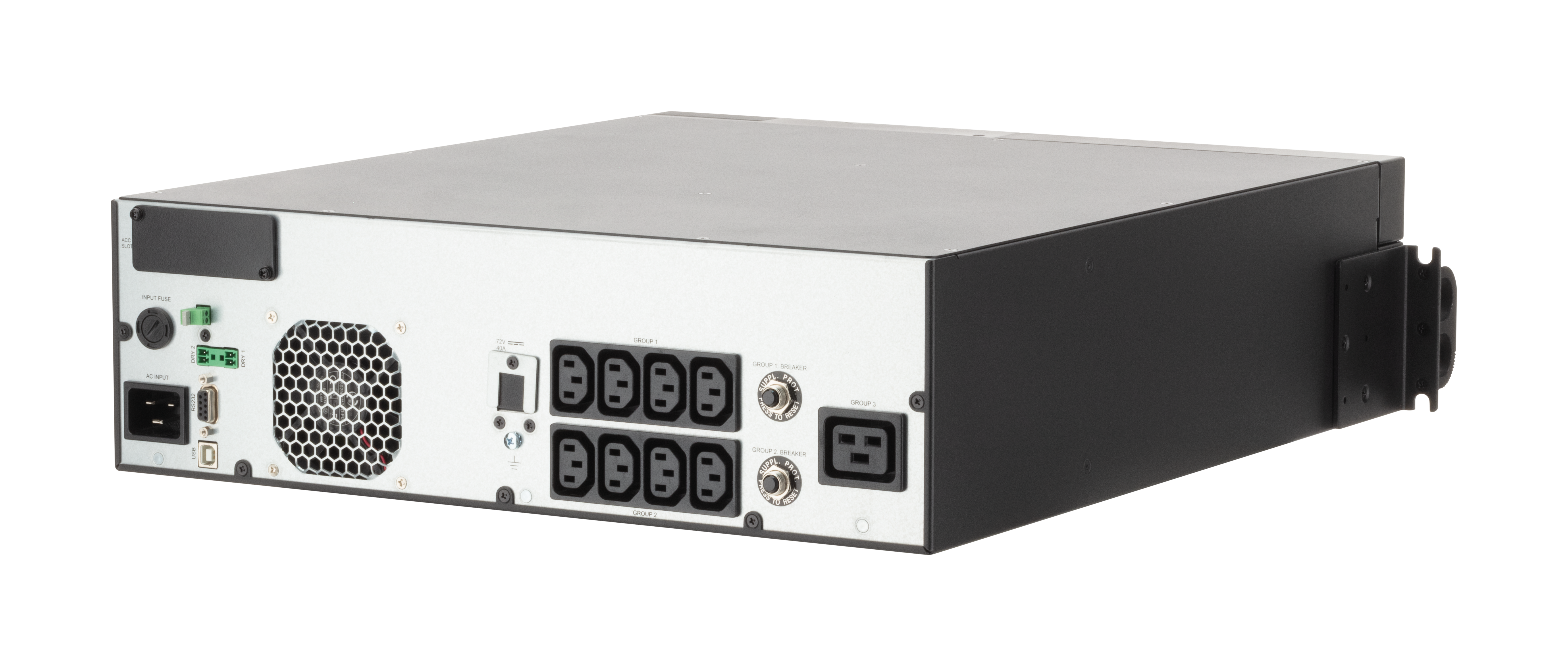

Legrand Keor SPE RT
Legrand's Keor SPE RT series is available in 5 power ratings 750VA, 1000VA, 1500VA, 2200VA and 3000VA
Overview
The Keor SPE RT UPS delivers smart, reliable power protection with line-interactive technology and pure sinewave output. Its versatile, convertible design allows use in both tower and rack configurations, making it ideal for a wide range of environments.
Available in power ratings from 750 to 3000 VA, the Keor SPE RT is managed by an advanced microprocessor and features integrated self-diagnostics as well as cold-start capability for maximum reliability. Inside, it is equipped with sealed, valve-regulated lead-acid batteries that are easily replaceable via a convenient front-access door.
With a built-in automatic voltage regulator (AVR), it safeguards connected devices from voltage fluctuations and electrical disturbances, combining intelligent performance with sleek, professional design for the ultimate in network power protection.
Key Features
Additional Features
-
Power factor: 0.7 to 0.9 configurable
- Different sizes 1U to 3U
- Multicoloured LED status bar
- Wide input voltage range and frequency
- Convertible display helps to use both for tower and rack applications
- Multicoloured status LED bar
- Hot swappable battery
- Cold start (DC power on)
- EPO
- Identical extended battery cabinet for RT 2U/3U models
- 2-dry contacts
Technical Specification
| WARRANTY |
3 Year UPS and Batteries |
| RATING KVA |
0.75 / 1 / 1.5 / 2 / 3 |
| DIMENSIONS (WxHxD) |
440 x 44 x 513 (1U - 750VA, 1000VA), 440 x 88 x 440 (2U - 1000VA), 440 x 44 x 557 (1U - 1500VA), 440 x 88 x 440 (2U - 1500VA), 440 x 88 x 600 (2U - 2200VA), 440 x 132 x 500 (3U - 2200VA), 440 x 88 x 600 (2U - 3000VA), 440 x 132 x 500 (3U - 3000VA) |
| WEIGHT (Kg) |
13.5 / 16.9 / 16.8 / 17.5 / 28.3 / 29.5 |
| INPUT PHASE | Single Phase |
| INPUT VOLTAGE TOLERANCE RANGE |
Nominal: 230 / Range: 175 - 288 @ full load |
| INPUT FREQUENCY | 50/60Hz (Auto Sensing) |
| OUTPUT OUTPUT PHASE | Single Phase |
| OUTPUT POWER FACTOR |
0.7 to 0.9 |
| OUTPUT WAVEFORM | Pure sinewave |
| OUTPUT VOLTAGE |
230V, adjustable to 200/208/220/230/240 |
| OUTPUT FREQUENCY |
50 or 60Hz (±0.5%) |
| BATTERY RUNTIME |
10 minutes (750VA), 7 minutes (1U - 1000VA), 12 minutes (2U - 1000VA), 8 minutes (1U - 1500VA), 10 minutes (2U - 1500VA), 11 minutes (2U/3U - 2200VA), 6 minutes (2U/3U - 3000) |
| MECHANICAL AC OUTLETS |
5*C13 (750/1U-1000VA), 8*C13 (2U - 1000VA), 5*C13 (1U - 1500VA), 8*C13 (2U - 1500VA) 8*C13 + 1*C19 (2U/3U - 2200VA, 2U/3U - 3000VA) |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| STORAGE TEMPERATURE TOLERANCE | 0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE |
<1000m |
| COMMUNICATION |
USB, RS232, SNMP Slot, EPO, 2 dry contacts |
| PARALLEL | N/A |
| FUNCTIONS | Off-Mode Charging, AVR, Auto-Restart, Cold Start, RJ11 andRJ45 Filters, LCD |
Resources
Keor SPE RT Rackmount Brochure
Keor SPE RT Quick Start Guide
Keor SPE RT User & Installation Manual
Keor SPE RT Battery Cabinet Installation Guide
Keor SPE RT Data Sheets
Keor SPE RT Environmental Certification (PEP)
