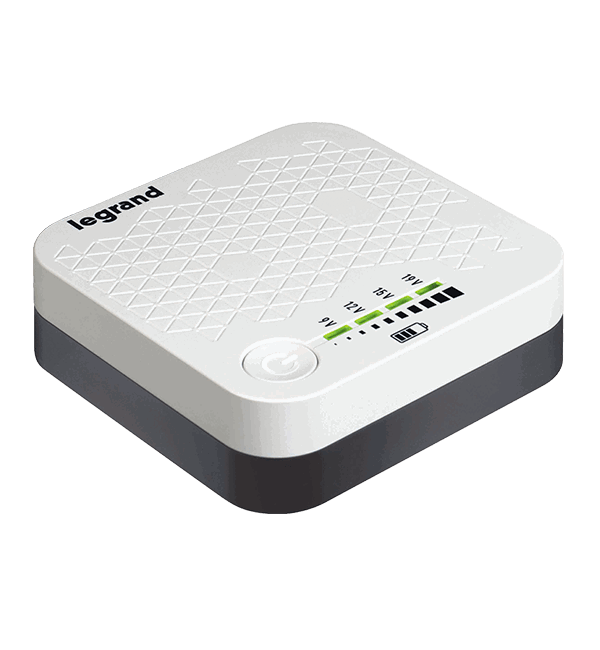

Legrand Keor DC
The Keor DC is powered via the 230 Va.c. home network and is equipped with 4 different power jacks
Overview
Keor DC is the new UPS designed to provide the continuity of operation in case of power failure to all Internet connected devices such as modem, router, cordless or VoIP phones.
Its elegant and modern design, with ultra-compact dimensions, allows it to adapt perfectly to the home, even in small spaces.
Key Features
Technical Specification
| WARRANTY |
3 year parts & battery |
| RATING VA |
25 |
| DIMENSIONS (WxDxH |
95 x 95 x 28.5 |
| WEIGHT (g) |
300 |
| INPUT PHASE | Single Phase |
| INPUT VOLTAGE |
100V - 240V |
| INPUT VOLTAGE TOLERANCE RANGE |
90V - 264V |
| OUTPUT PHASE | Single Phase |
| OUTPUT WAVEFORM |
DC |
| OUTPUT VOLTAGE |
9 – 12 – 15 – 19 ± 5% |
| BATTERY VOLTAGE / CAPACITY |
3.7V / 2200mAh |
| PROTECTIONS |
Over-Charge, Over-Temperature and Short-Circuit Protection |
| OPERATING TEMPERATURE TOLERANCE |
0 ̴35°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| OUTPUT PINS |
5.5*2.1 - 4.75*1.7 - 3.5*1.35 - 5.5*2.5 |
Resources
Legrand Keor DC Brochure
Legrand Keor DC Data Sheet
Legrand Keor DC Environmental Passport (PEP)
