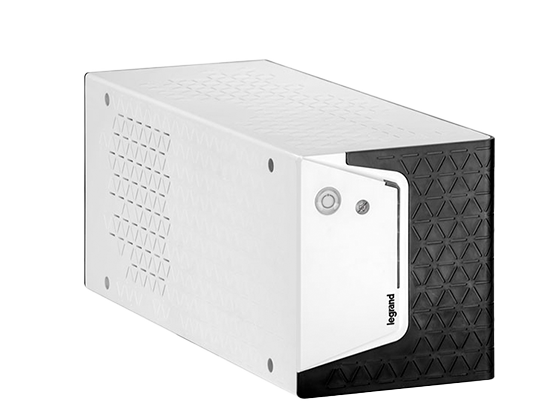

Legrand Keor SP
The Keor SP series is available in four power ratings 600VA, 800VA, 1000VA, 1500VA and 2000VA.
Overview
Ensure your critical IT applications stay powered and protected with the Keor SP, a single phase UPS featuring advanced line interactive technology. Available in 600, 800, 1000, 1500, and 2000 VA models, it delivers reliable performance for homes and businesses alike.
Built with CPU controlled management and sealed, maintenance free lead acid batteries, the Keor SP provides consistent backup power when you need it most. Its built in automatic voltage regulator (AVR) shields your equipment from voltage spikes, drops, and other electrical disturbances, keeping your systems safe and running smoothly.
Key Features
Additional Features
-
3 colours LED bar
- Mute button
- NAS compatibility
Technical Specification
| WARRANTY |
3 year parts & battery |
| RATING KVA |
0.6 / 0.8 / 1 / 1.5 / 2 |
| DIMENSIONS (WxHxD |
120 x 138 x 330 (600/800VA), 148 x 173 x 380 (1000/1500/2000VA) |
| WEIGHT (Kg) |
5 / 5.5 / 9 / 10.5 / 11.8 |
| INPUT PHASE | Single Phase |
| INPUT VOLTAGE |
230V ± 10% |
| INPUT VOLTAGE TOLERANCE RANGE |
170V - 290V |
| OUTPUT PHASE | Single Phase |
| OUTPUT POWER FACTOR | 0.6 |
| OUTPUT WAVEFORM |
Simulated SineWave |
| OUTPUT VOLTAGE | 220/230/240VAC (±10%) |
| OUTPUT FREQUENCY |
50/60Hz (±1Hz) |
| OUTPUT EFFICIENCY |
>97% |
| BATTERY DC VOLTAGE | 12VDC (800VA), 24VDC (1000/1500/2000VA) |
| BATTERY CHARGE CAPACITY | 0.5A |
| MECHANICAL AC OUTLETS |
4*C13 (600/800VA), 6*C13 (1000/1500/2000VA) |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| STORAGE TEMPERATURE TOLERANCE | 0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| COMMUNICATION |
USB + RS232 port |
| OPTIONAL COMMS | N/A |
| PARALLEL | N/A |
| FUNCTIONS |
Off-Mode Charging, AVR, Auto Restart, Cold Start, RJ11 and RJ45 Filters |
Resources
Legrand Keor SP Brochure
Legrand Keor SP Data Sheet 600 / 800VA
Legrand Keor SP Data Sheet 1000 / 1500 / 2000VA
Legrand Keor SP Environmental Passport (PEP)
