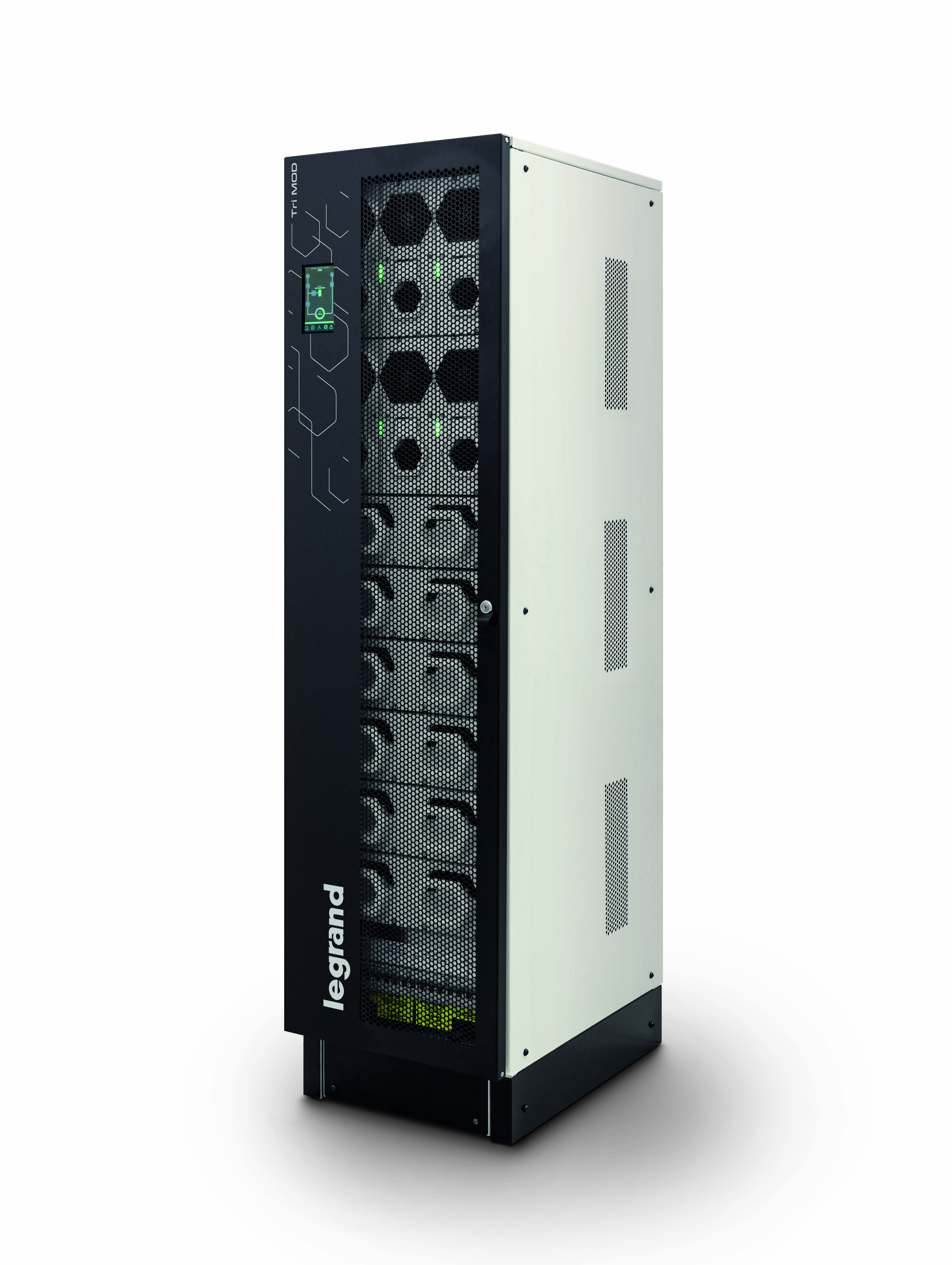

Legrand TriMOD
The NEW Legrand TriMOD is a three phase uninterruptible power supply from 10 to 80kVA, characterised by its modular architecture. The redundant and self configuring single phase modules guarantee maximum reliability and flexibility, making the TriMOD the ideal solution for Healthcare, IT, and Data Centre Applications.
Overview
The NEW Legrand TriMOD has not onl had a face lift but it can be paralleled up to 160kVA with up to 4 units and boasts a user friendly 5" touch screen display for monitoring the UPS in real time. The batteries are sealed VRLA and can be arranged inside the UPS or within an external universal battery cabinet in dedicated draws to achieve longer runtimes.
Key Features
Additional Features
- Multi control board function
- Dual input function
- Plug & Play technology
- Menu available in 7 languages
- Frequency converter in 40-70Hz out 50/60Hz (can be selected by the user)
- Operates with a power-supply unit
- Three independent output phases
- Eco Mode
- EPS Mode
- Adjustable output voltage with 1V intervals (190÷245V)
- Bypass activation speed control
- Events log with date and time
- Overall historical data and for each individual power module
- Automatic recognition of the power modules
Technical Specification
| WARRANTY | 1 Year Parts (upgradable to 5 Years) |
| RATING KVA |
10 - 80 |
| DIMENSIONS (WxDxH) | 414Wx628Dx1650-1370H (10-30kVA) 416Wx628Dx1370H(40-60kVA) |
| WEIGHT | 155-120KG (10-20kVA) 181-146KG (30kVA) 146KG (40kVA) 165KG (60kVA) |
| INPUT PHASE | Three Phase / Single Phase |
| INPUT VOLTAGE | 380/400/415 3PH+N+PE (or 220,230,240 1PH) |
| INPUT VOLTAGE TOLERANCE RANGE | 400V +15%/-20% - 230V +15%/-20% (10-20kVA) 400V +15%/-20% (30-60kVA) |
| INPUT FREQUENCY | 45-65 Hz |
| OUTPUT OUTPUT PHASE | Three Phase / Single Phase |
| OUTPUT POWER FACTOR | 1 |
| OUTPUT WAVEFORM | Sinusoidal |
| OUTPUT VOLTAGE | 380/400/415VAC |
| OUTPUT FREQUENCY | 50/60 Hz selectable by the user ±2 % (standard), ±14 % (extended) |
| OUTPUT EFFICIENCY |
96.5% |
| BATTERY RUNTIME | Dependent on battery capacity |
| BATTERY DC VOLTAGE | VRLA - AGM / 240 Vdc |
| BATTERY CHARGE CAPACITY | Smart charge technology. 3-stage advanced cycle |
| OPERATING TEMPERATURE TOLERANCE | 0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| COMMUNICATION | 2 RS232 serial ports, 1 logical gate, 5 ports with dry contacts, 1 slot for interfaces |
| OPTIONAL COMMS | extended VFC |
| PARALLEL |
10 - 40kVA up to 4 units, 60 & 80kVA up to 2 units |
| FUNCTIONS | multi control board, dual input, three independent output phases, ECO mode, EPS mode, Adjustable output voltage with 1V intervals, automatic recognition of power modules |
