CertaUPSC400R

CertaUPS

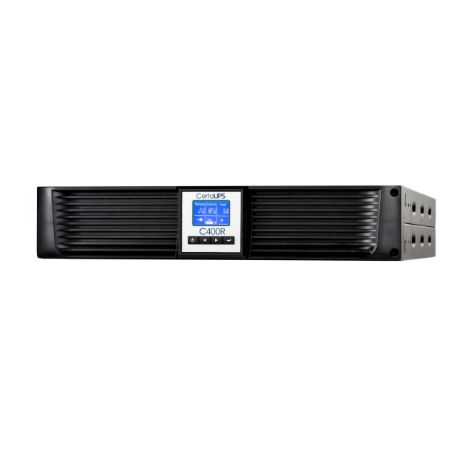

C400R (Horizontal) Front

The C400R series is available in three power ratings 1000VA, 2000VA and 3000VA.

Overview

The CertaUPS C400R single phase range of online double conversion uninterruptible power supplies for tower or rack installation. Its compact and ergonomic rack mountable and floor standing design makes these UPS systems an ideal fit for many server cabinets, particularly in 2000VA and 3000VA configurations. Ideal for server environments, IT facilities and the telecoms market

Additional Features

  • Online double conversion topology
  • High efficiency up to 95%
  • Pure sinewave output
  • Energy saving mode
  • Rackmount or Tower compatible
  • 2U convertible design
  • Clear, user friendly display
  • Network management for alerts and scheduled shutdown
  • Serial, USB, Ethernet, ModBus and Relay connectivity
  • Intelligent monitoring software

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 1 / 2 / 3
DIMENSIONS (WxDxH) 438W x 435D x 88H (2U) (C400R-010), 438W x 435D x 88H (2U) (C400R-020), 438W x 605D x 88H (2U) (C400R-030)
WEIGHT 15 (C400R-010) / 20 (C400R-020) / 30 (C400R-030)
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 176-276VAC (100% load), 120-276VAC (50% load)
INPUT FREQUENCY 50/60Hz
INPUT VOLTAGE TOLERANCE RANGE ±10%
OUTPUT OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.9
OUTPUT WAVEFORM Sinewave
OUTPUT VOLTAGE 208/220/230/240VAC
OUTPUT FREQUENCY 50/60Hz (±10%)
OUTPUT EFFICIENCY >87% (Line mode - 1000VA), >89% (Line mode - 2000VA), >90% (Line mode - 3000VA), >83% (Battery mode - 1000/2000VA), >86% (Battery mode - 3000VA), >95% (Eco mode)
BATTERY RUNTIME 5 minutes (C400R-010-B / C400R-020-B /C400R-030-B), Dependent on battery capacity, (C400R-010-C / C400R-020-C /, C400R-030-C)
BATTERY DC VOLTAGE 36VDC (C400R-010) / 48VDC (C400R-020) / 72VDC (C400R-030)
BATTERY CHARGE CAPACITY 1.5A (All 'B' models), 6A (All 'C' models)
MECHANICAL AC OUTLETS IEC C13*8 (1000VA and 2000VA models), IEC C13*8 and C19*1 (3000VA model)
OPERATING TEMPERATURE TOLERANCE 0 - 40°C
STORAGE TEMPERATURE TOLERANCE 0 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION USB and RS232
OPTIONAL COMMS SNMP / dry contact relays / Modbus
PARALLEL N/A
FUNCTIONS EPO, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD
